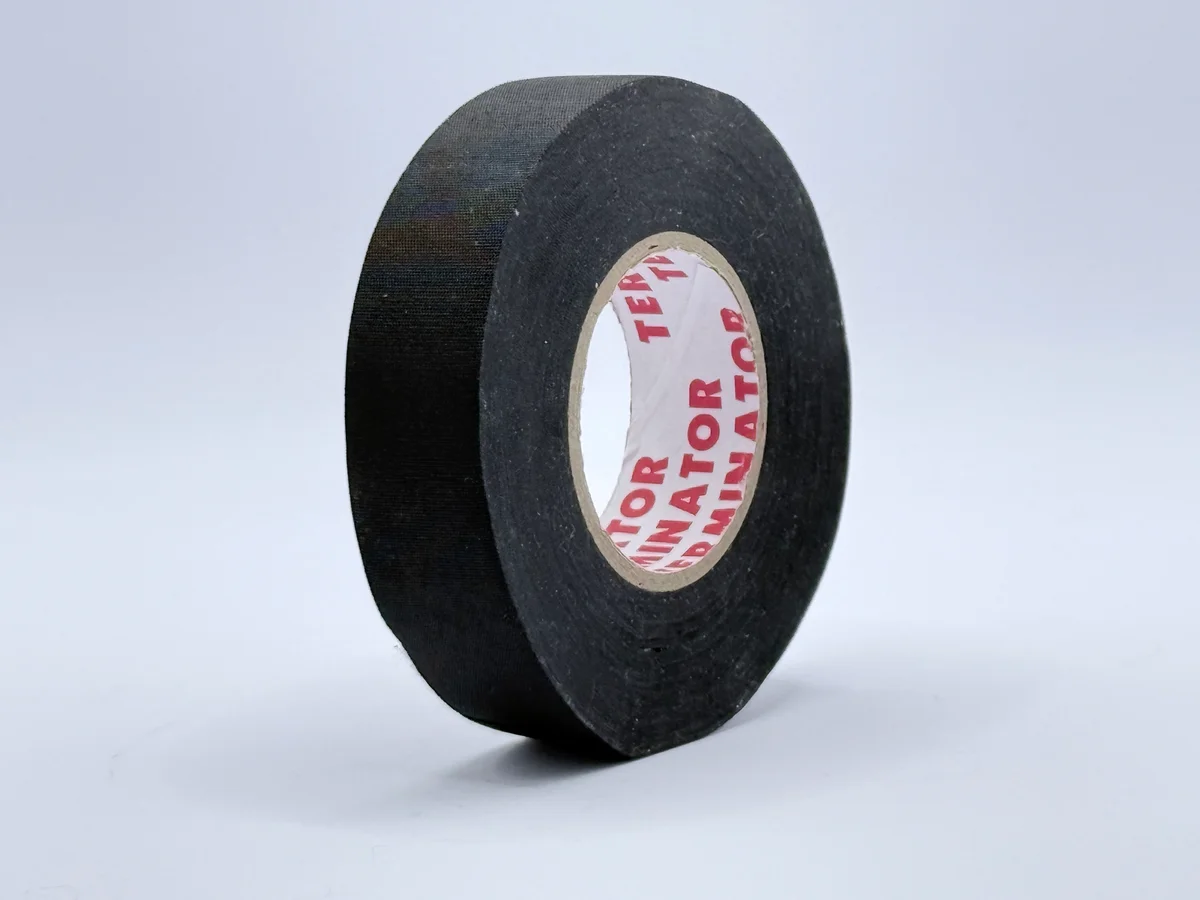

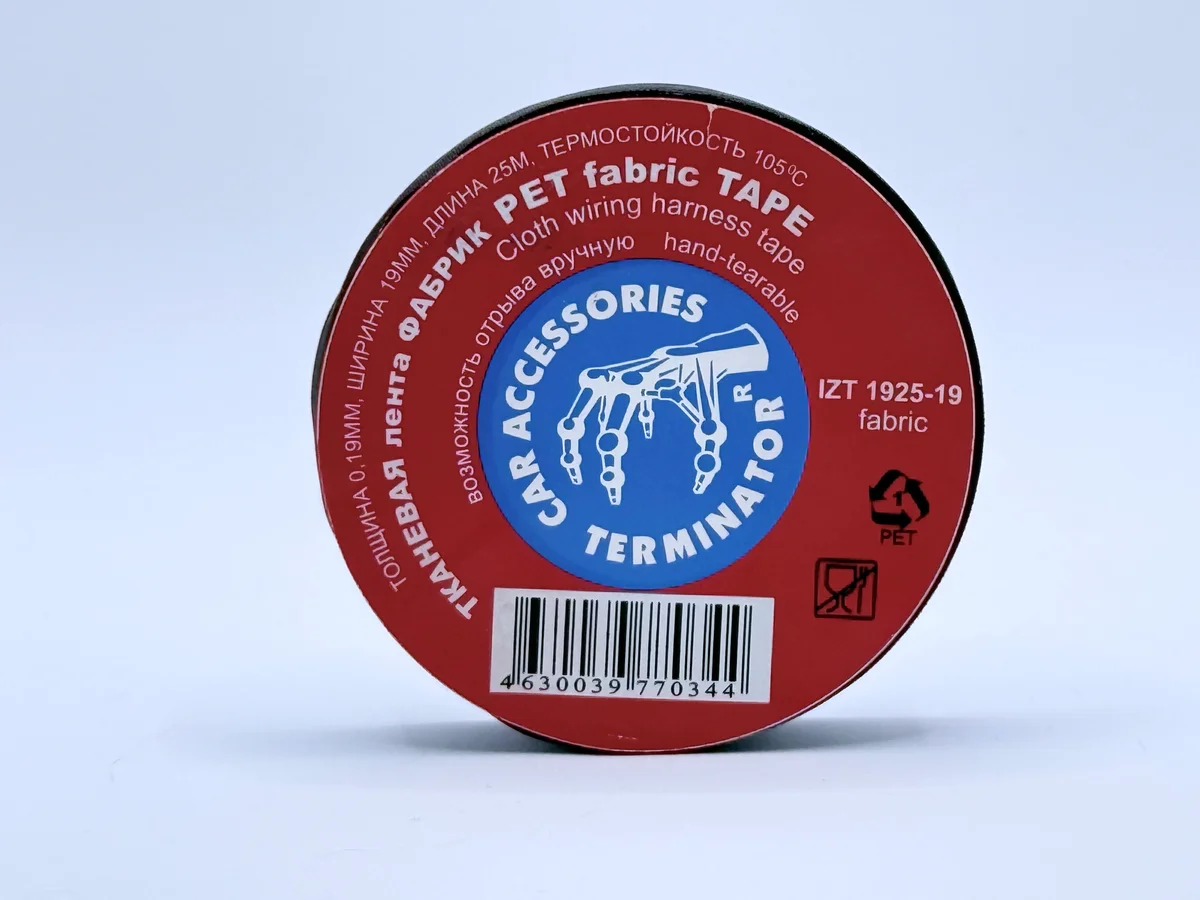

IZT 1925-19 Fabric
Economy Under-Hood Insulating Tape (125°C)
Economy under-hood protection. Thin fabric tape with hand-tear capability, no cutting tools required.
Size 19 mm × 25 m
Thickness 0.16 mm
Temperature up to +125°C
Color
Cost-effective solution
Economy version of popular IZT Fabric series. Fabric tape for sealing, reducing noise during vehicle operation, and protecting cables and hoses from friction in engine compartment. Reduced thickness 0.16mm allows hand-tearing without cutting tools, speeding up installation. Base material and adhesive provide heat resistance up to 125°C.
Key Features
- Hand-tearable without tools
- Heat resistance up to 125°C
- Friction protection
- Quick installation
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 25 m
- Thickness
- 0.16 mm
- Material
- PET fabric (polyester)
- Adhesive type
- Acrylic
Strength & Adhesion
- Adhesion to Steel
- 0.35 кг/25 мм
- Tensile Strength
- 17 кг/25 мм
- Elongation at Break
- 15%
Temperature
- Temperature
- up to +125°C
- Peak Heat Resistance
- up to +125°C
Electrical
- Dielectric Strength
- 3 kV
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 30°C, 65% RH
Applications
- Engine compartment
- Quick installation without tools
- Harness wear protection
- Economy repairs
- Automotive electrical work
