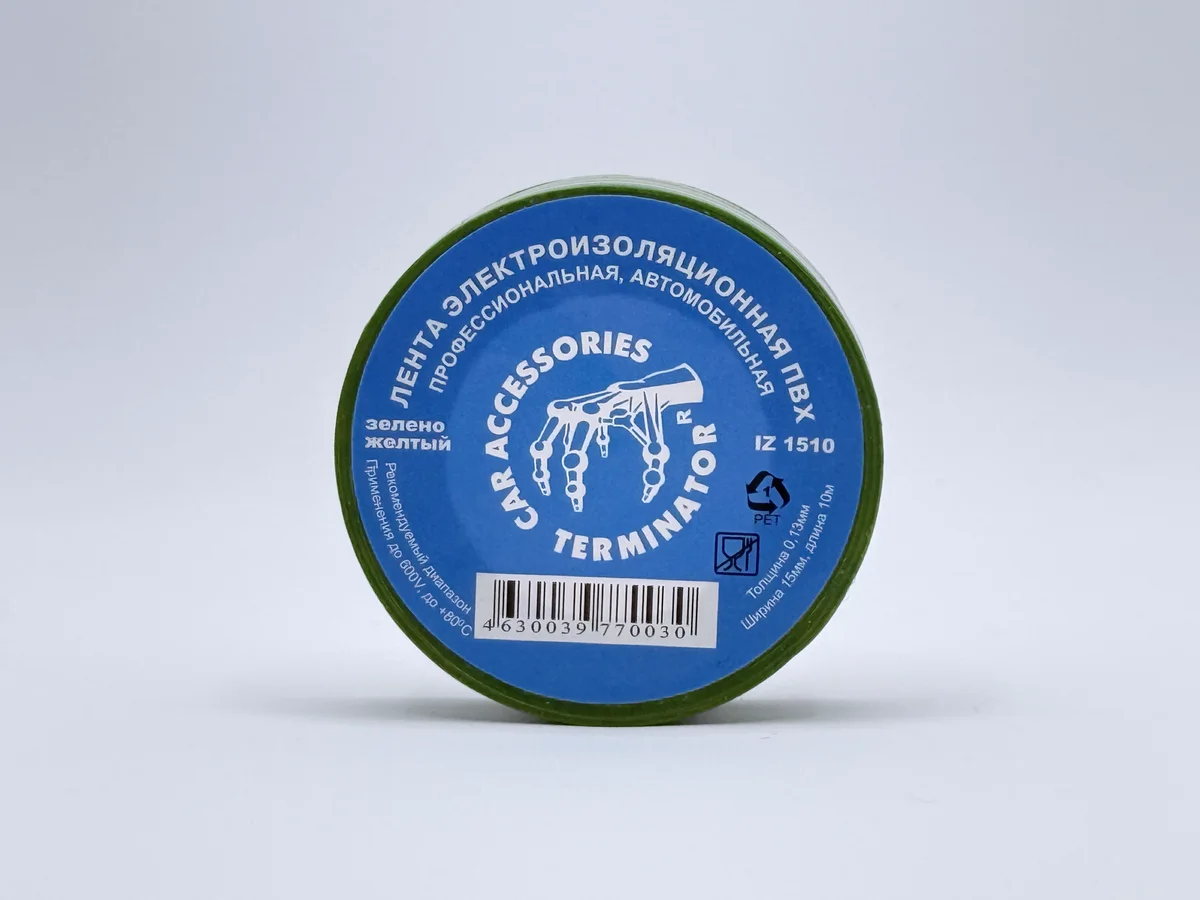

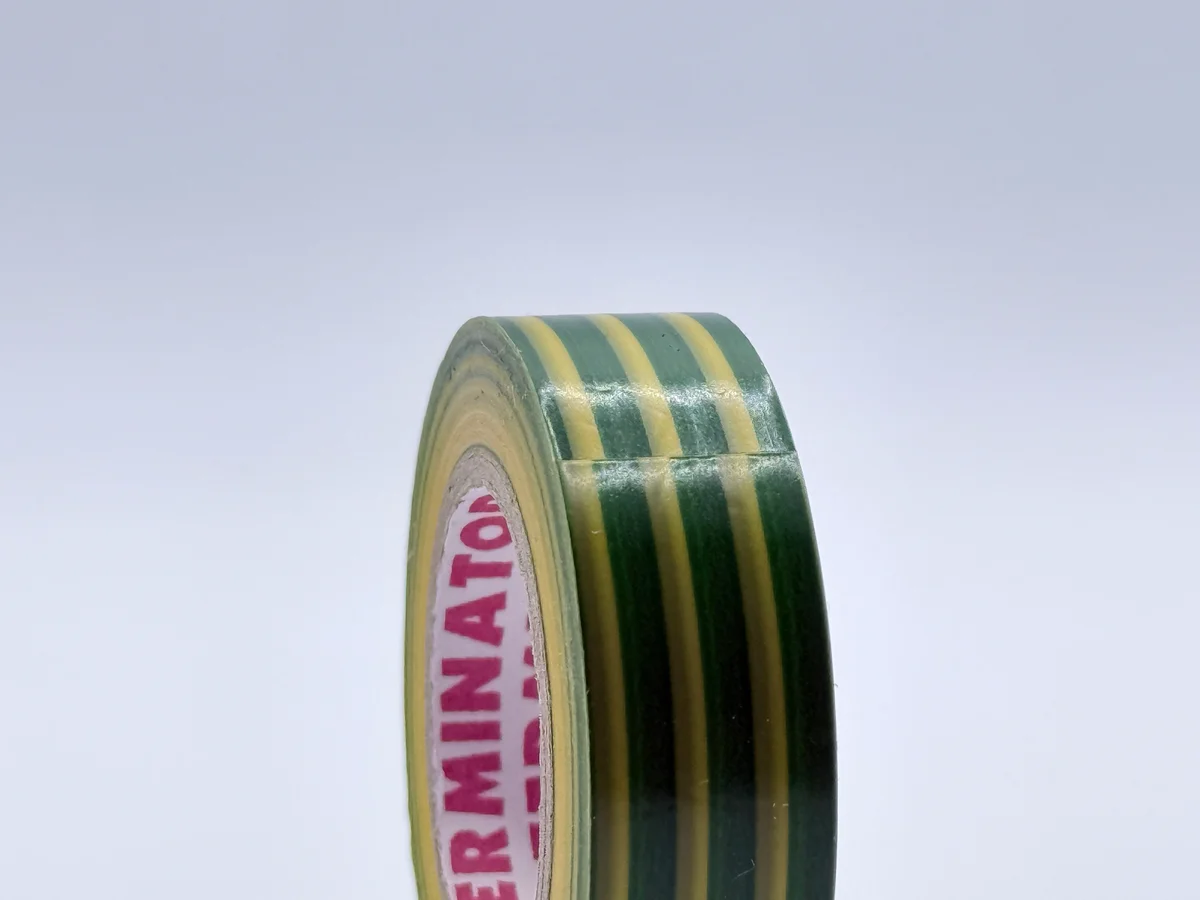

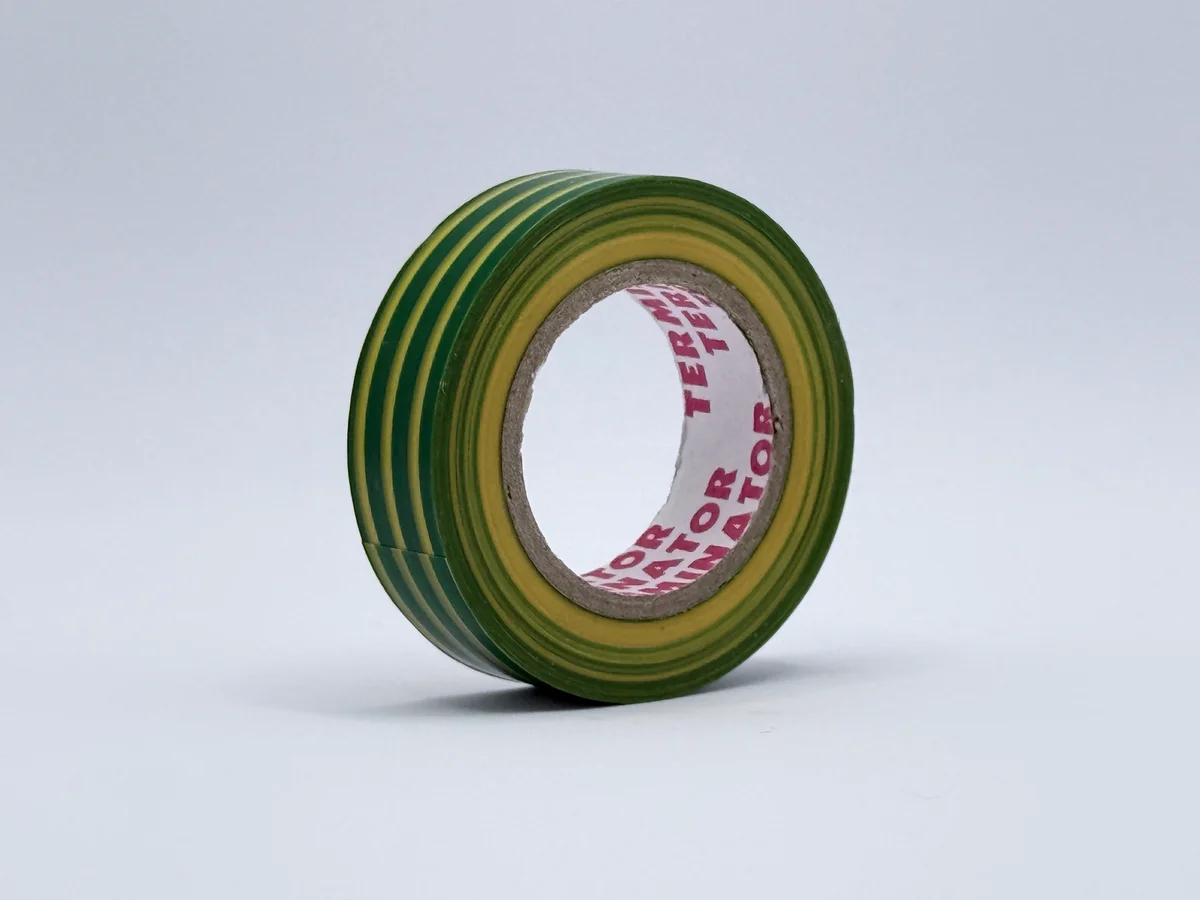

IZ 1510 GY
Yellow-Green PVC Earthing Tape
Earthing conductor marking. Yellow-green color for PE protective conductor identification per wiring regulations.
Size 15 mm × 10 m
Thickness 0.12 mm
Temperature up to +80°C
Color
Mandatory yellow-green earthing color
IZ 1510 GY — yellow-green PVC insulating tape for marking earth conductors (PE). Meets wiring regulation requirements for protective conductor color coding. PVC backing with non-hardening rubber adhesive and anti-aging additives. Stable properties up to 80°C. For mandatory earthing conductor identification in electrical installations.
Key Features
- Compliant with wiring regulations
- Rubber adhesive with anti-aging additives
- Dielectric strength 5 kV
- Stable properties up to 80°C
Technical Specifications
Dimensions & Material
- Size
- 15 mm × 10 m
- Thickness
- 0.12 ± 0.012 mm
- Material
- PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.35 кг/25 мм
- Tensile Strength
- 5 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- up to +80°C
Electrical
- Dielectric Strength
- 5 kV
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
Applications
- PE conductor marking
- Protective earthing
- Electrical installation work
- Industrial and residential electrical systems
