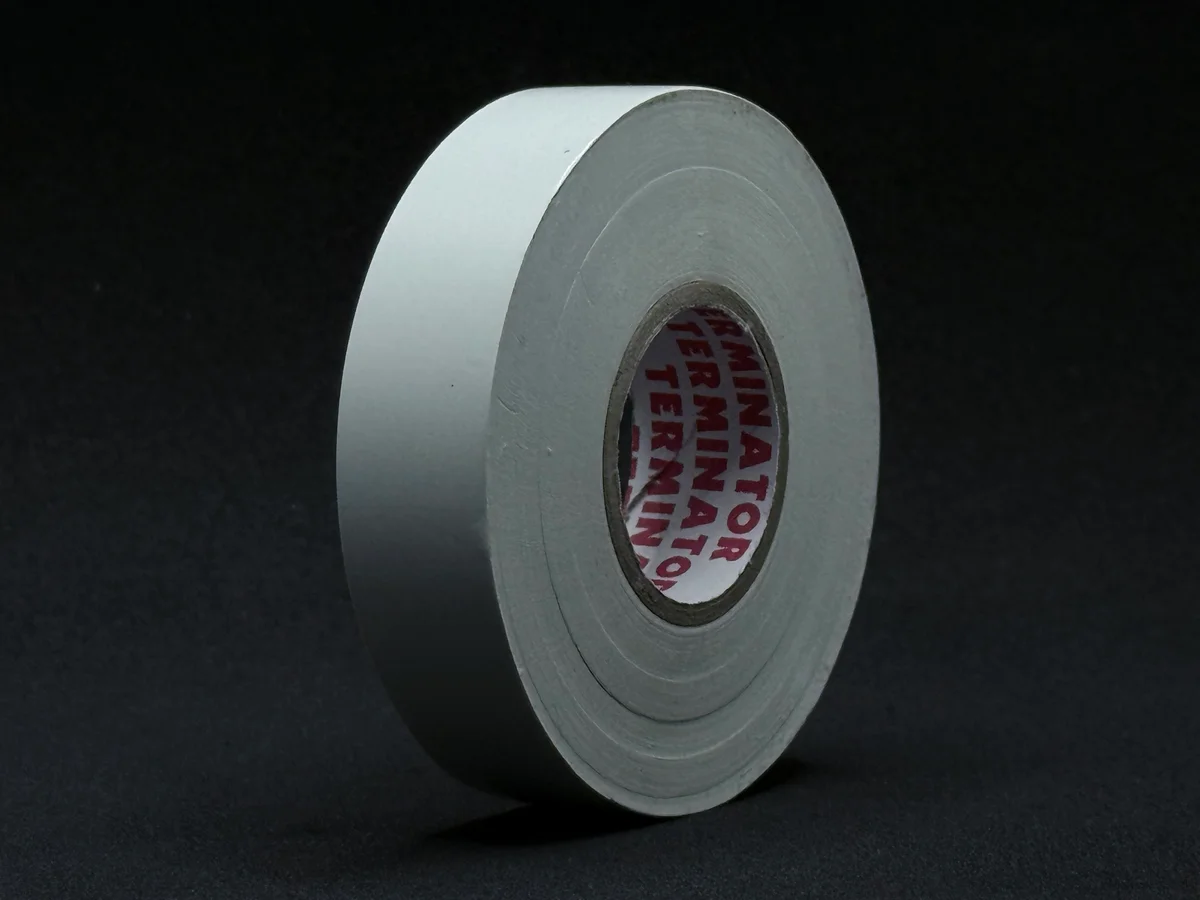

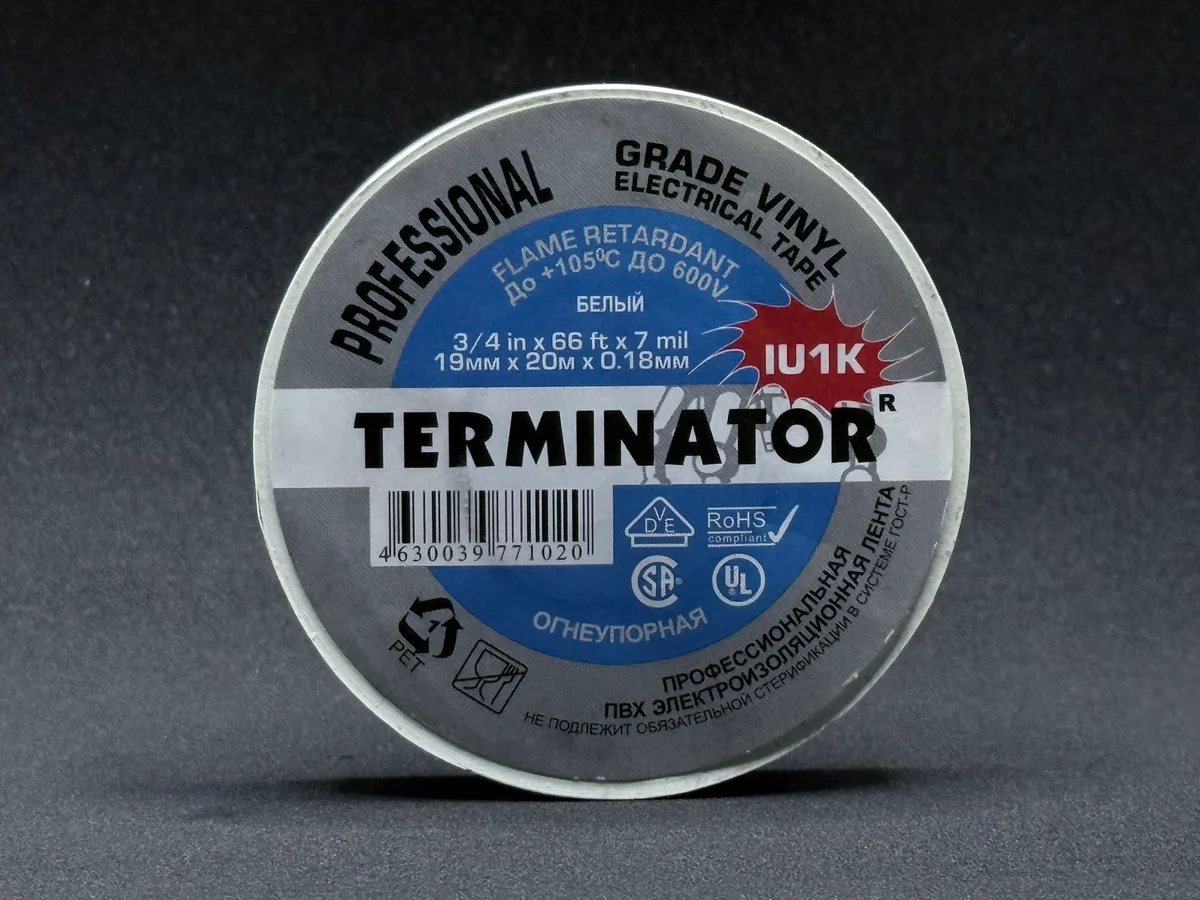

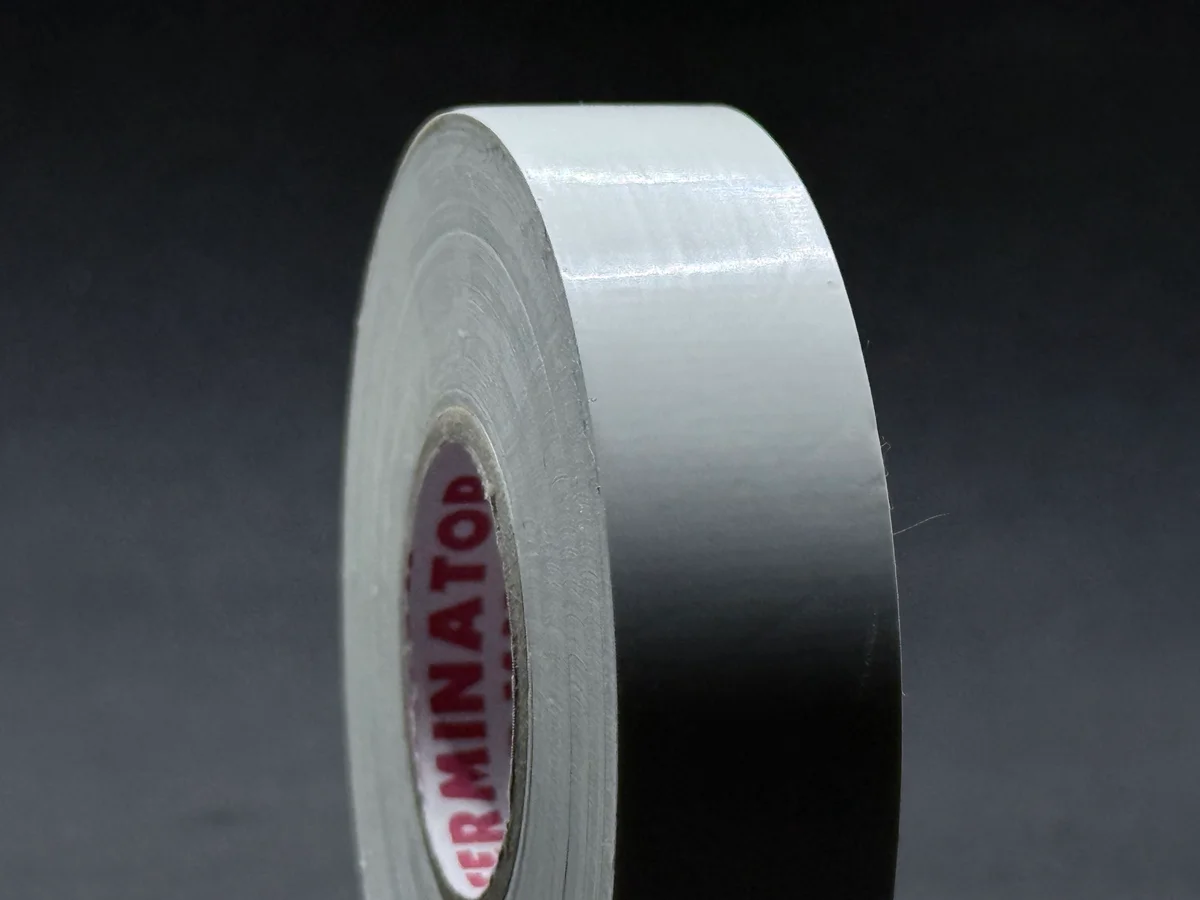

IU1K WhitePremium Insulating Tape
Universal premium insulating tape. Extended temperature range and color coding capability.
- Size
- 19 mm × 20 m
- Thickness
- 0.18 mm
- Temperature
- from -10°C to +105°C
Description
White IU1K insulating tape. Increased 0.18mm thickness provides insulation across an extended temperature range. Used for both insulation and color coding of wires.
Applications
- Wire color coding
- Indoor electrical installations
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 20 m
- Thickness
- 0.18 ± 0.02 mm
- Material
- Plasticized PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.45 кг/25 мм
- Tensile Strength
- 7 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- from -10°C to +105°C
Electrical
- Dielectric Strength
- 7 kV
Special Properties
- Flammability rating
- 60 sec (UL) / PASS (CSA)
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
