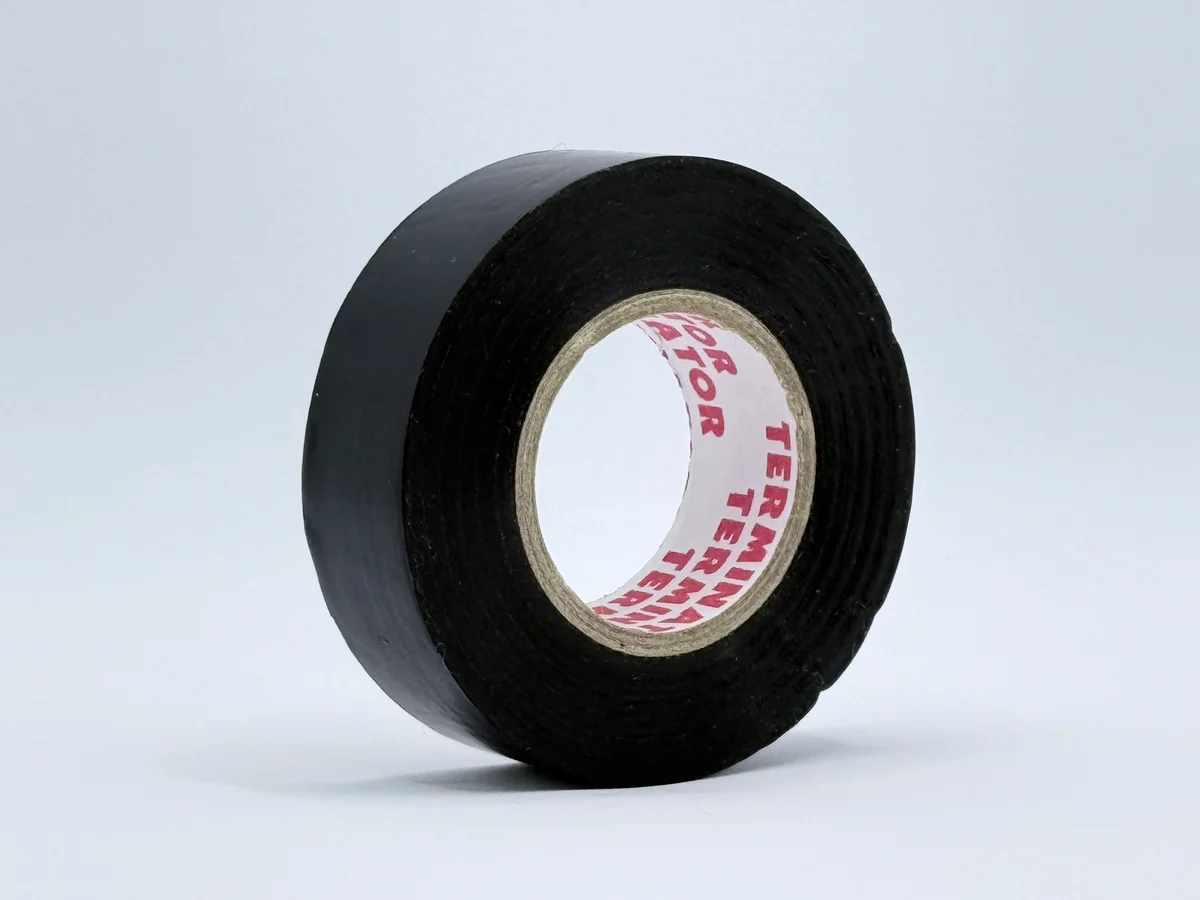

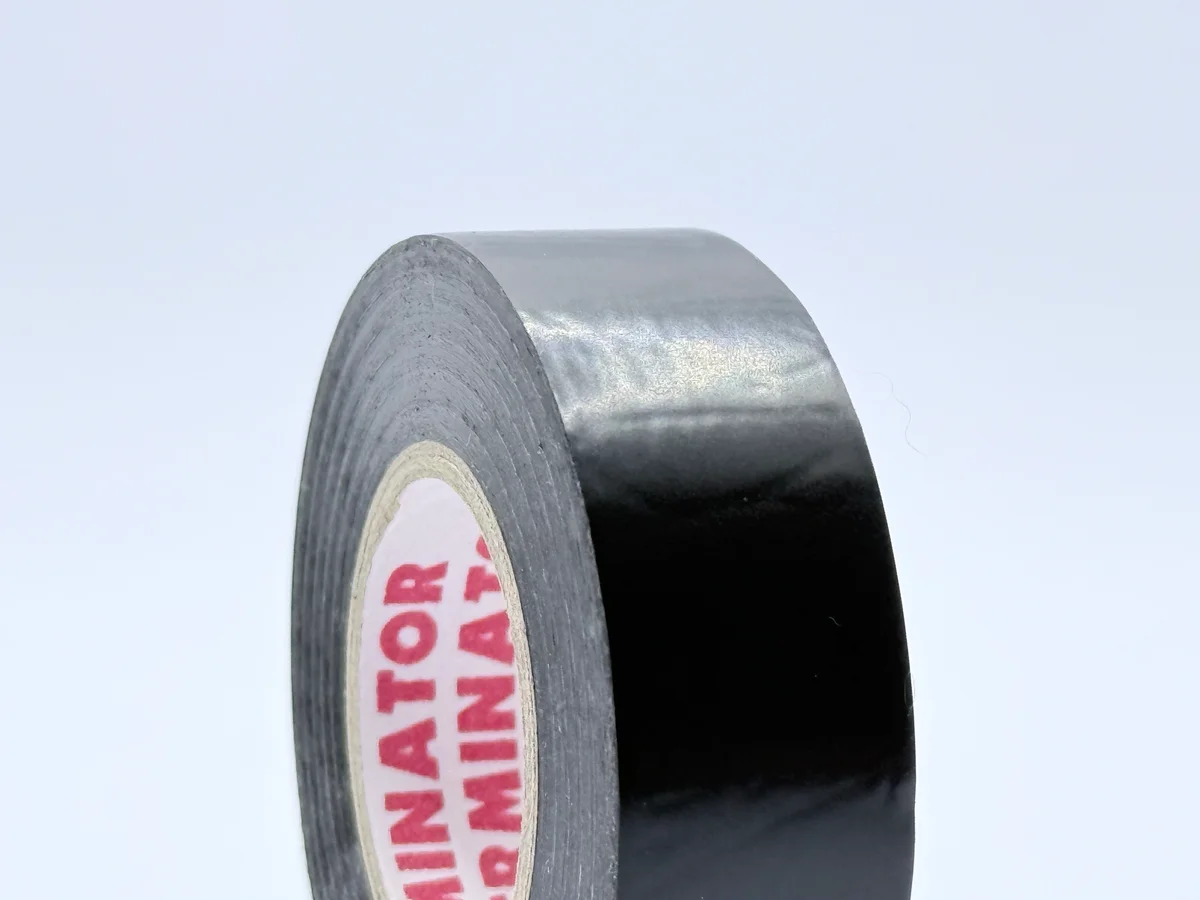

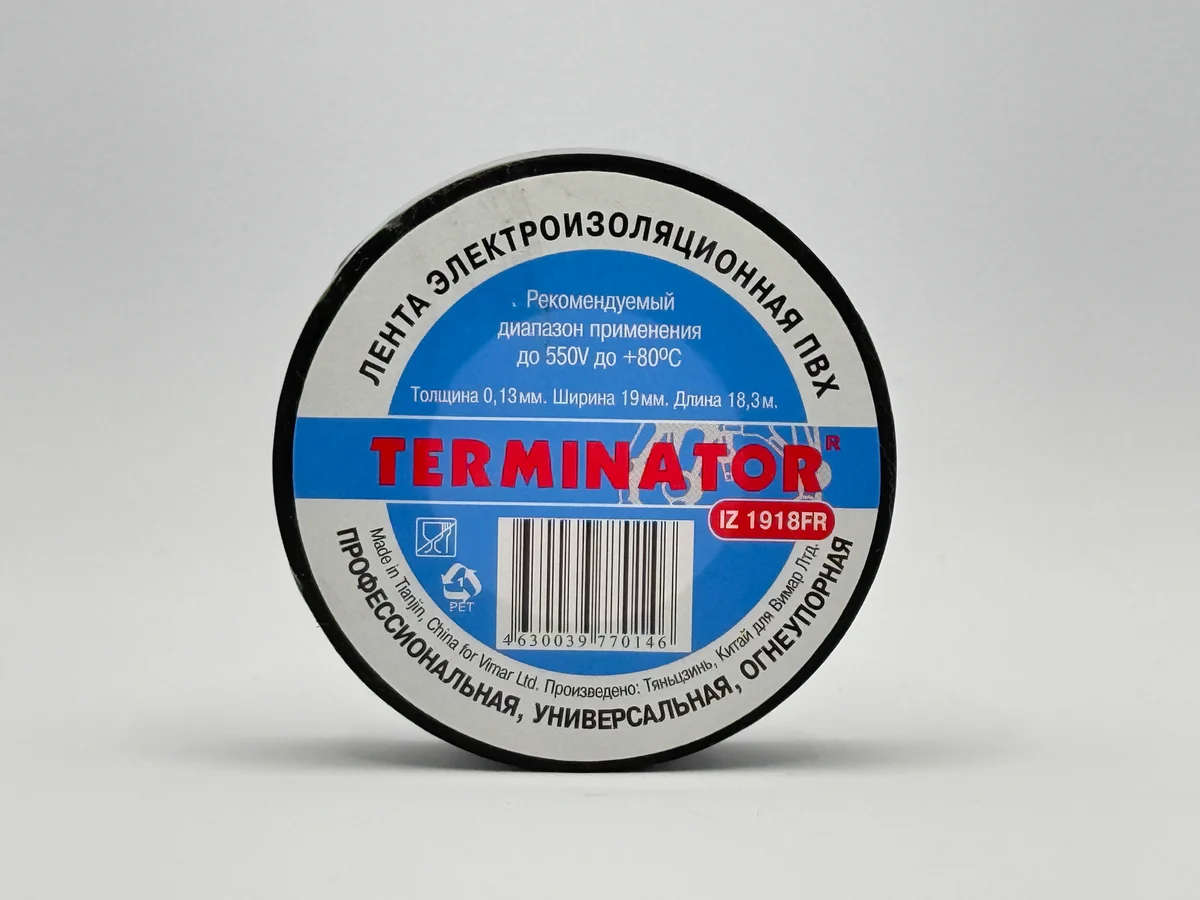

IZ 1918 FR
Premium Self-Extinguishing PVC Insulating Tape
Premium self-extinguishing PVC insulating tape in standard 19mm format. Rubber adhesive with anti-aging additives. For general electrical work and critical installations.
Size 19 mm × 18.3 m
Thickness 0.12 mm
Temperature up to +80°C
Color
Self-extinguishing (15 sec)
IZ 1918 FR — premium PVC insulating tape in standard 19mm format for electrical insulation work. PVC backing coated with non-hardening rubber adhesive with anti-aging additives. Maintains properties at temperatures up to 80°C. Self-extinguishing formula (15 sec) does not support combustion. Designed for general electrical applications including critical installations with heightened fire safety requirements.
Key Features
- Rubber adhesive with anti-aging additives
- Dielectric strength 5 kV
- Stable properties up to 80°C
- Does not support combustion
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 18.3 m
- Thickness
- 0.12 ± 0.012 mm
- Material
- PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.35 кг/25 мм
- Tensile Strength
- 5 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- up to +80°C
Electrical
- Dielectric Strength
- 5 kV
Special Properties
- Flammability rating
- 15 sec
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
Applications
- General electrical work
- Commercial facilities
- Public buildings
- Electrical installations with enhanced requirements
