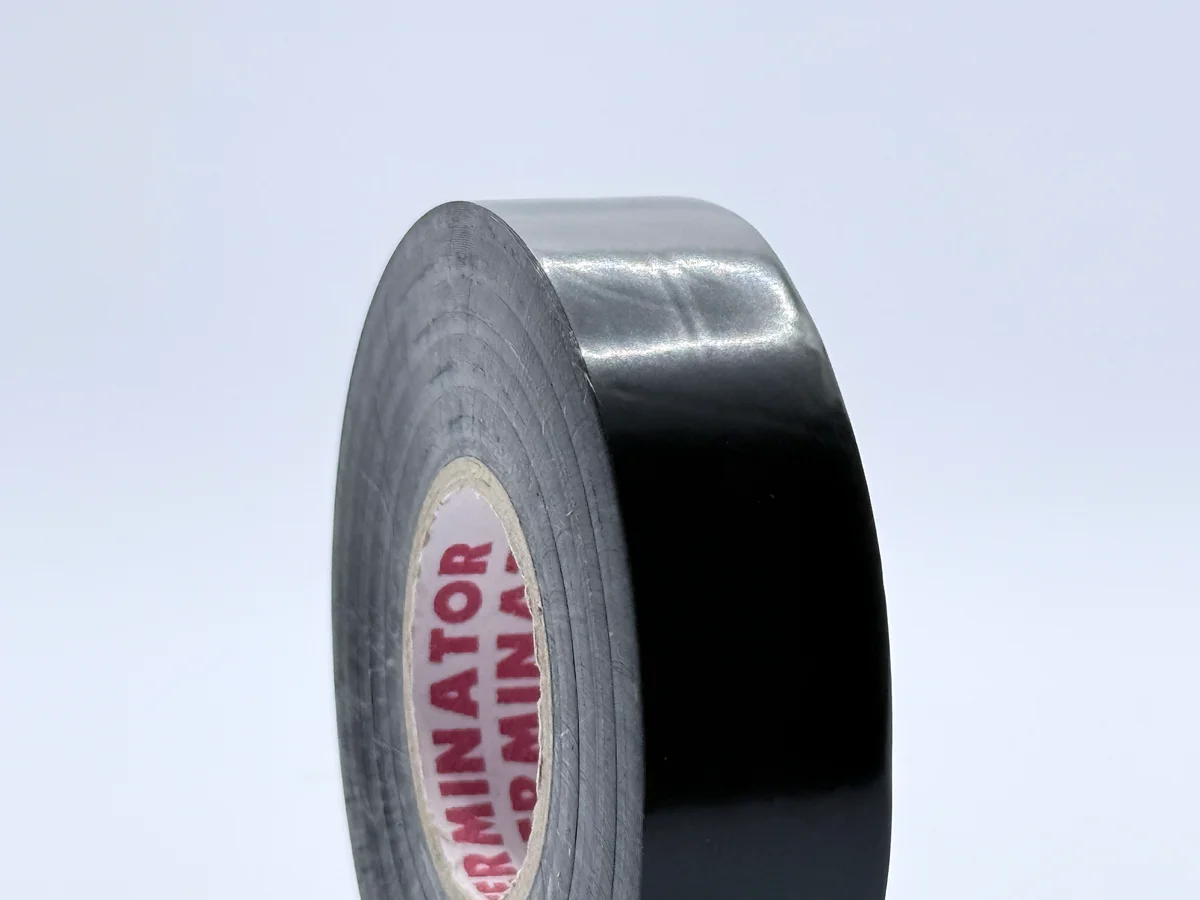

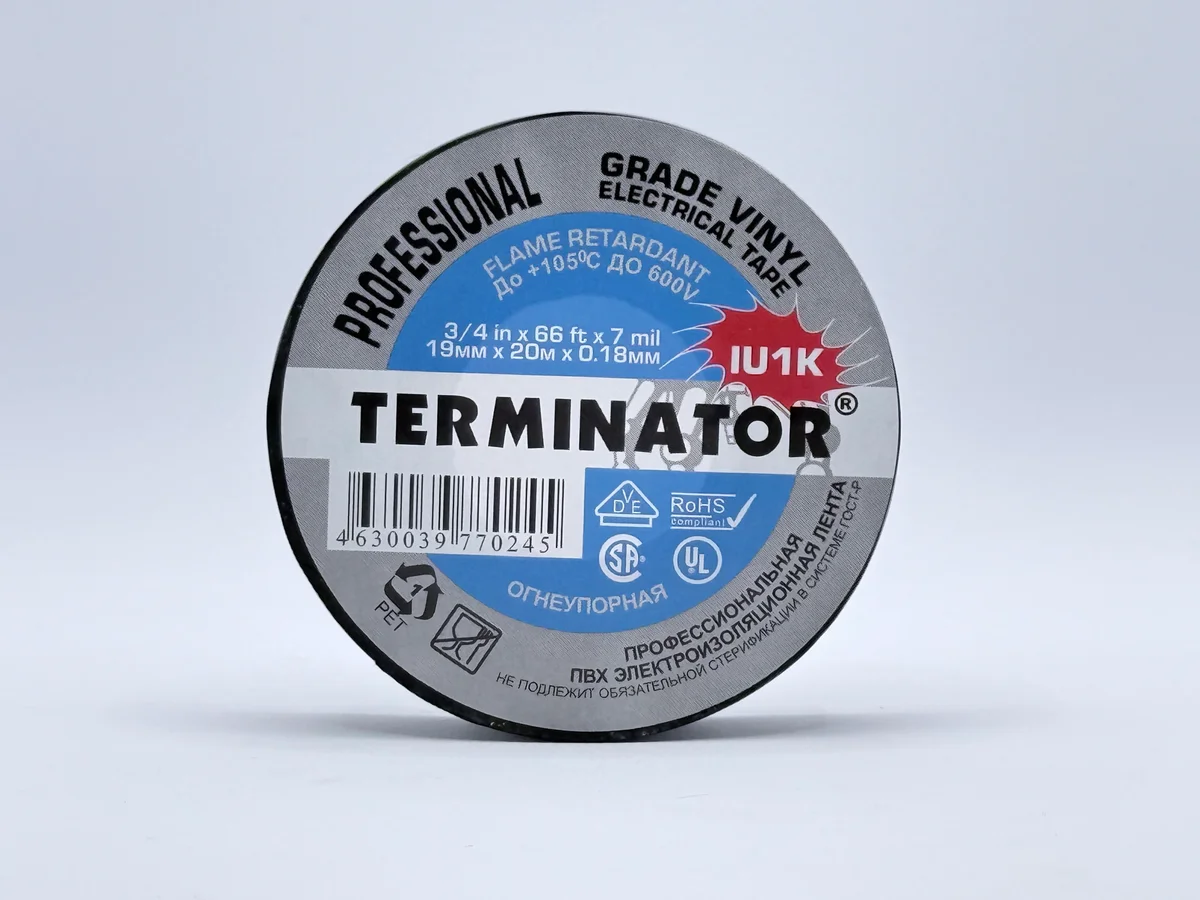

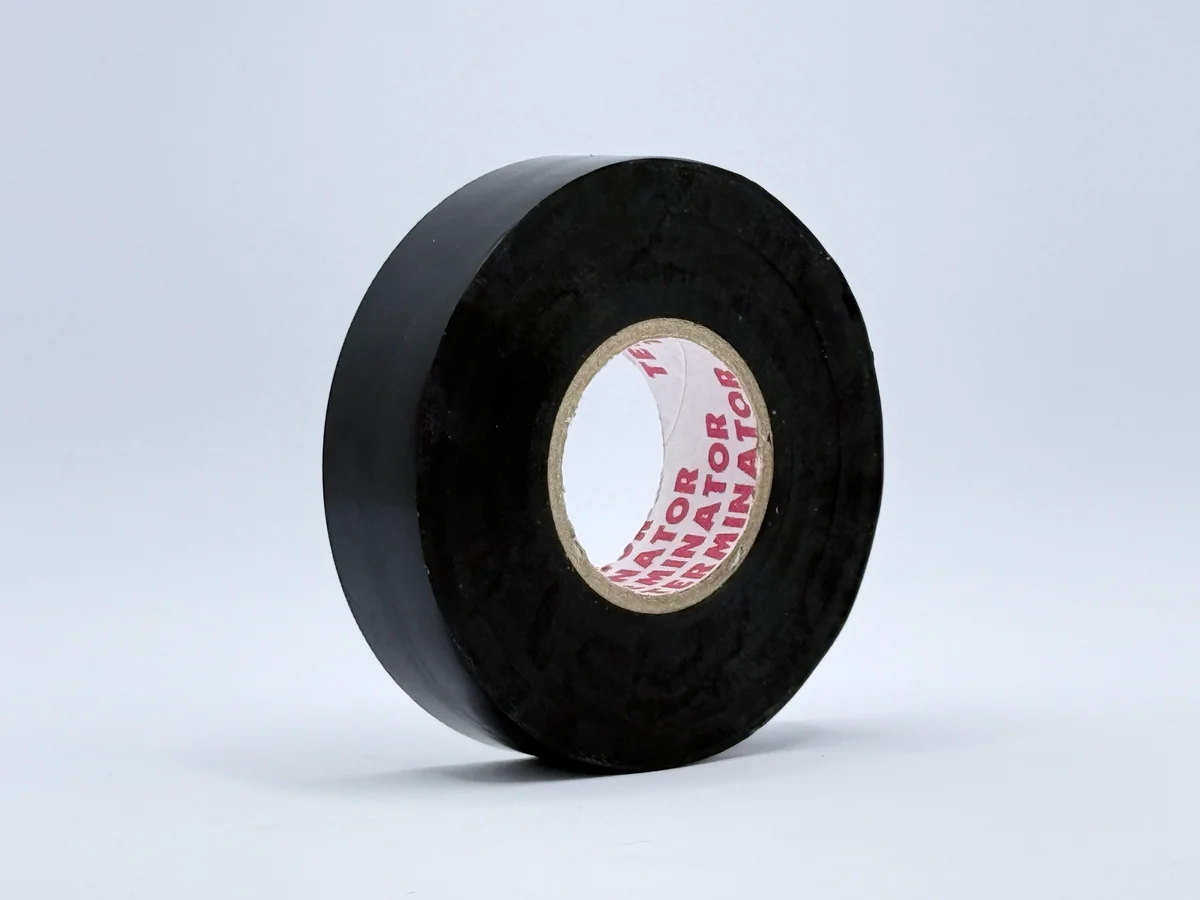

IU1K BlackPremium Insulating Tape
Universal premium black insulating tape. Classic solution for most electrical installations.
- Size
- 19 mm × 20 m
- Thickness
- 0.18 mm
- Temperature
- from -10°C to +105°C
Description
Black IU1K insulating tape is the classic of professional electrical work. Universal black color suits any application, providing aesthetic appearance and reliable insulation. Increased 0.18mm thickness ensures operation across extended temperature range.
Applications
- General electrical installations
- Industrial electrical work
- Residential wiring
- Repair work
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 20 m
- Thickness
- 0.18 ± 0.02 mm
- Material
- Plasticized PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.45 кг/25 мм
- Tensile Strength
- 7 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- from -10°C to +105°C
Electrical
- Dielectric Strength
- 7 kV
Special Properties
- Flammability rating
- 60 sec (UL) / PASS (CSA)
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
