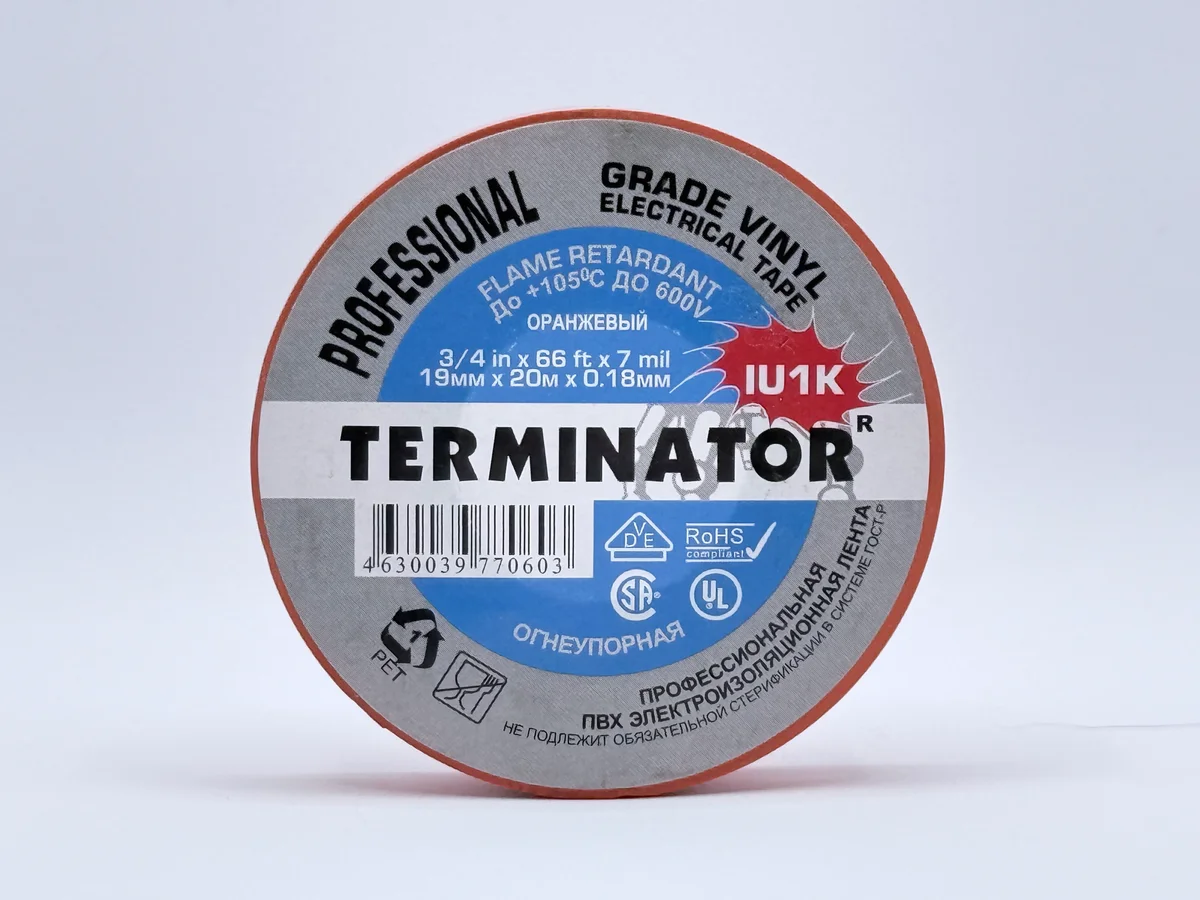

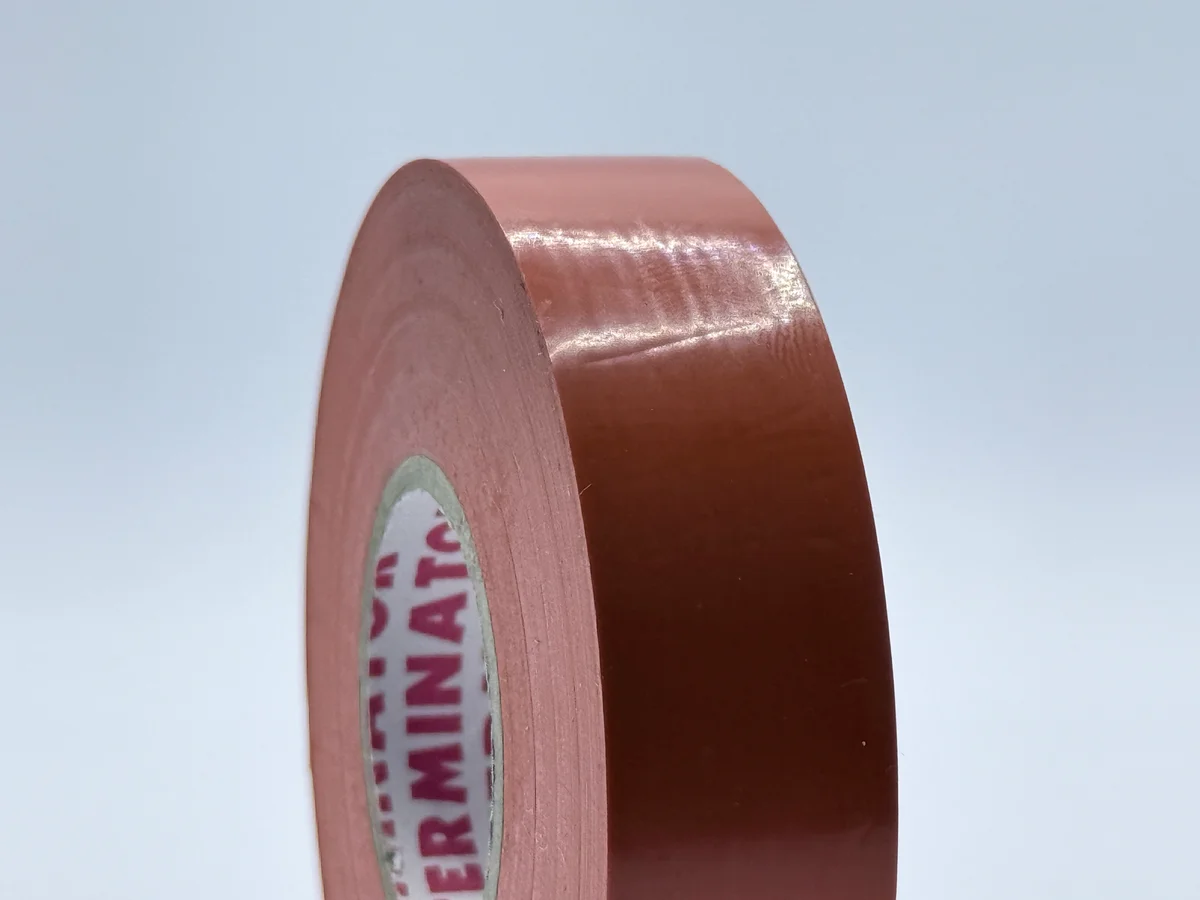

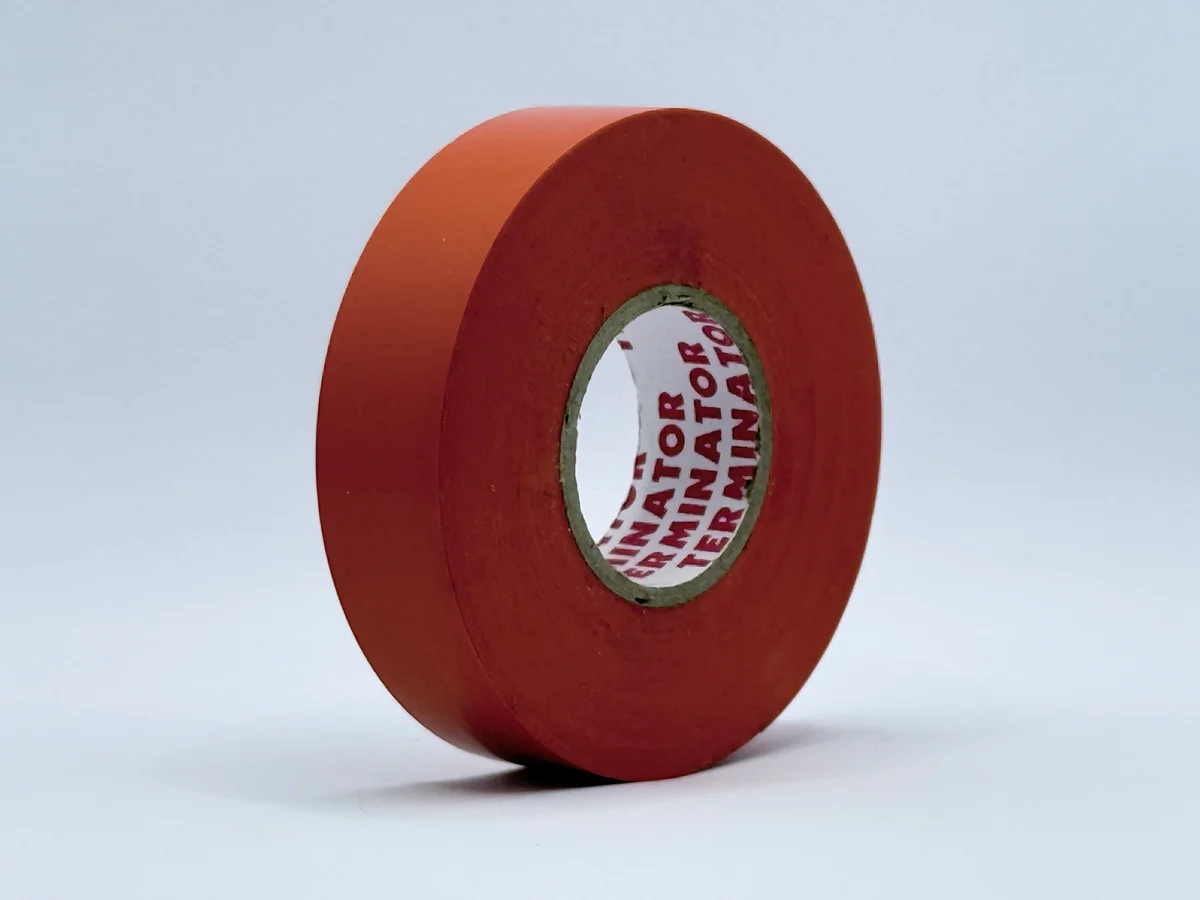

IU1K Orange
Premium Insulating Tape
Premium orange insulating tape. Bright marking for special circuits and signal lines.
Size19 mm × 20 m
Thickness0.18 mm
Temperaturefrom -10°C to +105°C
Extended temperature range
Orange IU1K insulating tape is used for marking special circuits, signal lines, and low-voltage systems. Bright orange color provides high contrast and easy identification. Premium quality for professional applications.
Key Features
- Professional quality
- Color coding system
- Increased 0.18mm thickness
- Reliable insulation
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 20 m
- Thickness
- 0.18 ± 0.02 mm
- Material
- Plasticized PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.45 кг/25 мм
- Tensile Strength
- 7 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- from -10°C to +105°C
Electrical
- Dielectric Strength
- 7 kV
Special Properties
- Flammability rating
- 60 sec (UL) / PASS (CSA)
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
Applications
- Signal lines
- Low-voltage systems
- Security systems
- Special electrical circuits
