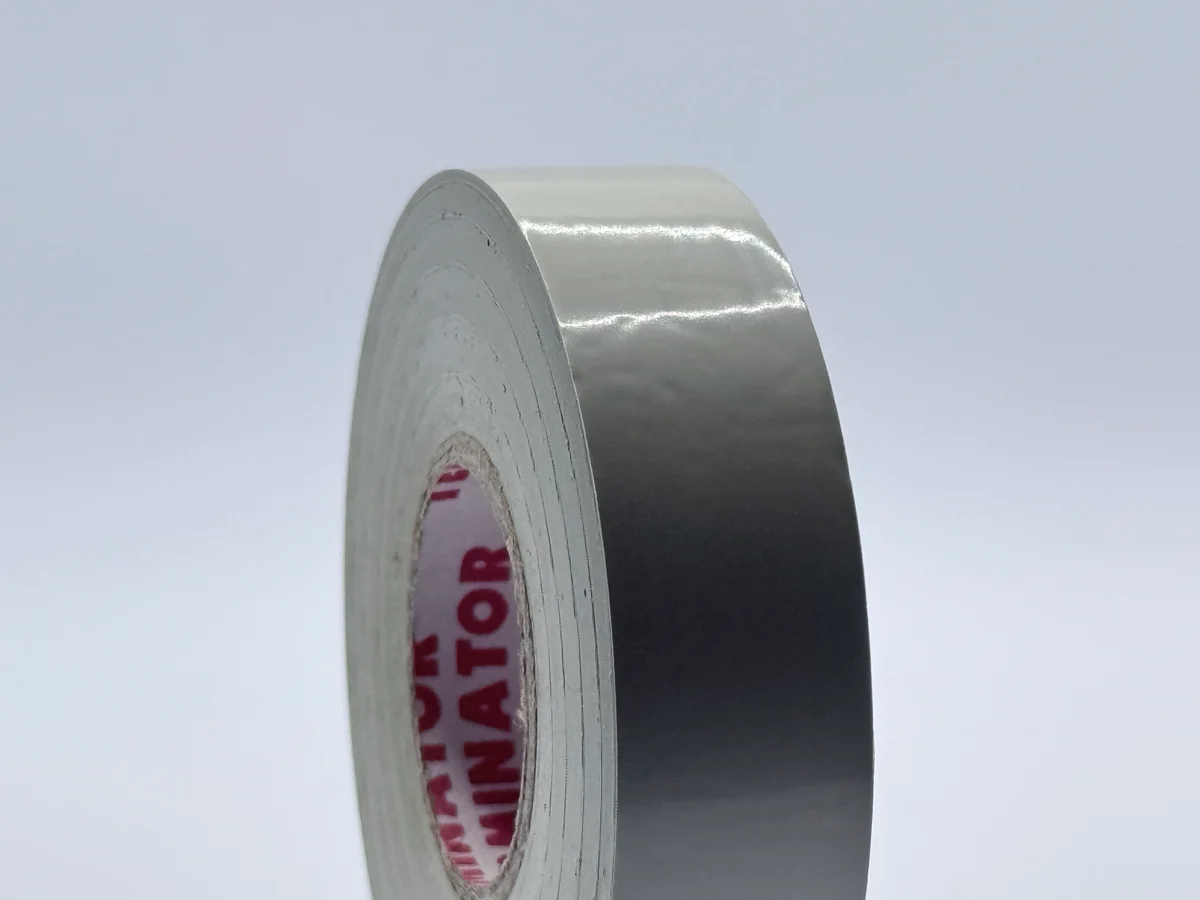

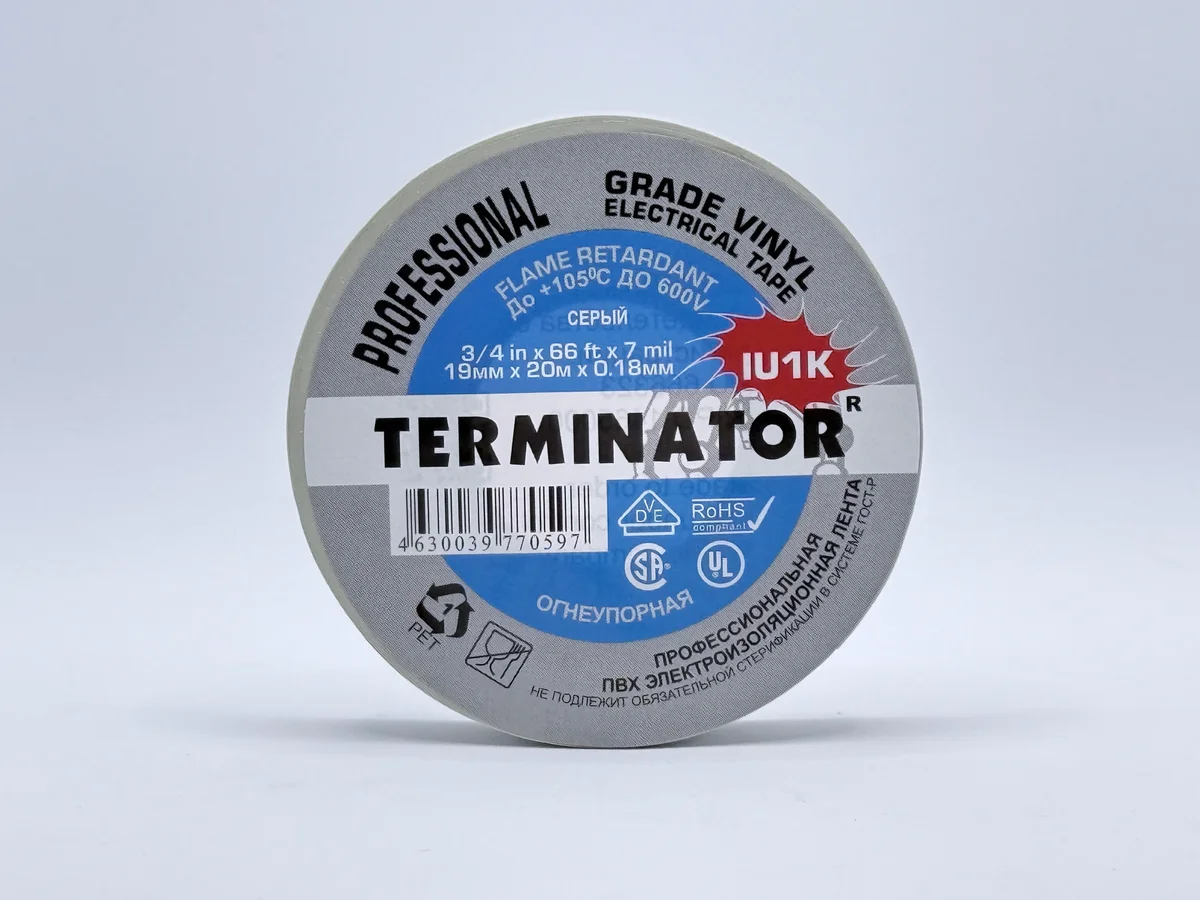

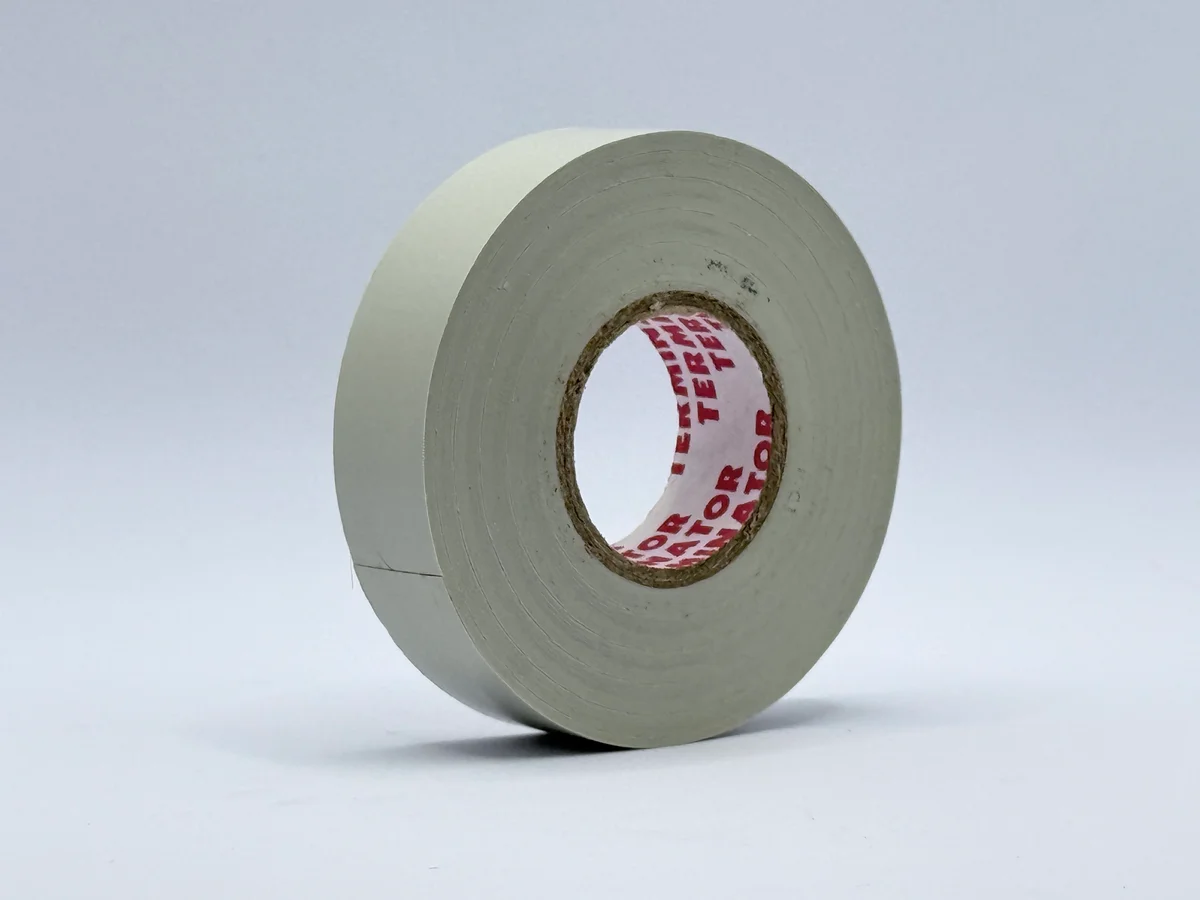

IU1K Gray
Premium Insulating Tape
Premium neutral gray insulating tape. Aesthetic solution for visible installations.
Size 19 mm × 20 m
Thickness 0.18 mm
Temperature from -10°C to +105°C
Extended temperature range
Gray IU1K insulating tape is a universal solution for aesthetic installations. Neutral gray color looks harmonious on most surfaces, making insulation less noticeable. Ideal for offices, public spaces, and visible areas.
Key Features
- Professional quality
- Color coding system
- Increased 0.18mm thickness
- Reliable insulation
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 20 m
- Thickness
- 0.18 ± 0.02 mm
- Material
- Plasticized PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.45 кг/25 мм
- Tensile Strength
- 7 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- from -10°C to +105°C
Electrical
- Dielectric Strength
- 7 kV
Special Properties
- Flammability rating
- 60 sec (UL) / PASS (CSA)
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
Applications
- Office spaces
- Visible wiring
- Interior installations
- Neutral conductor marking
