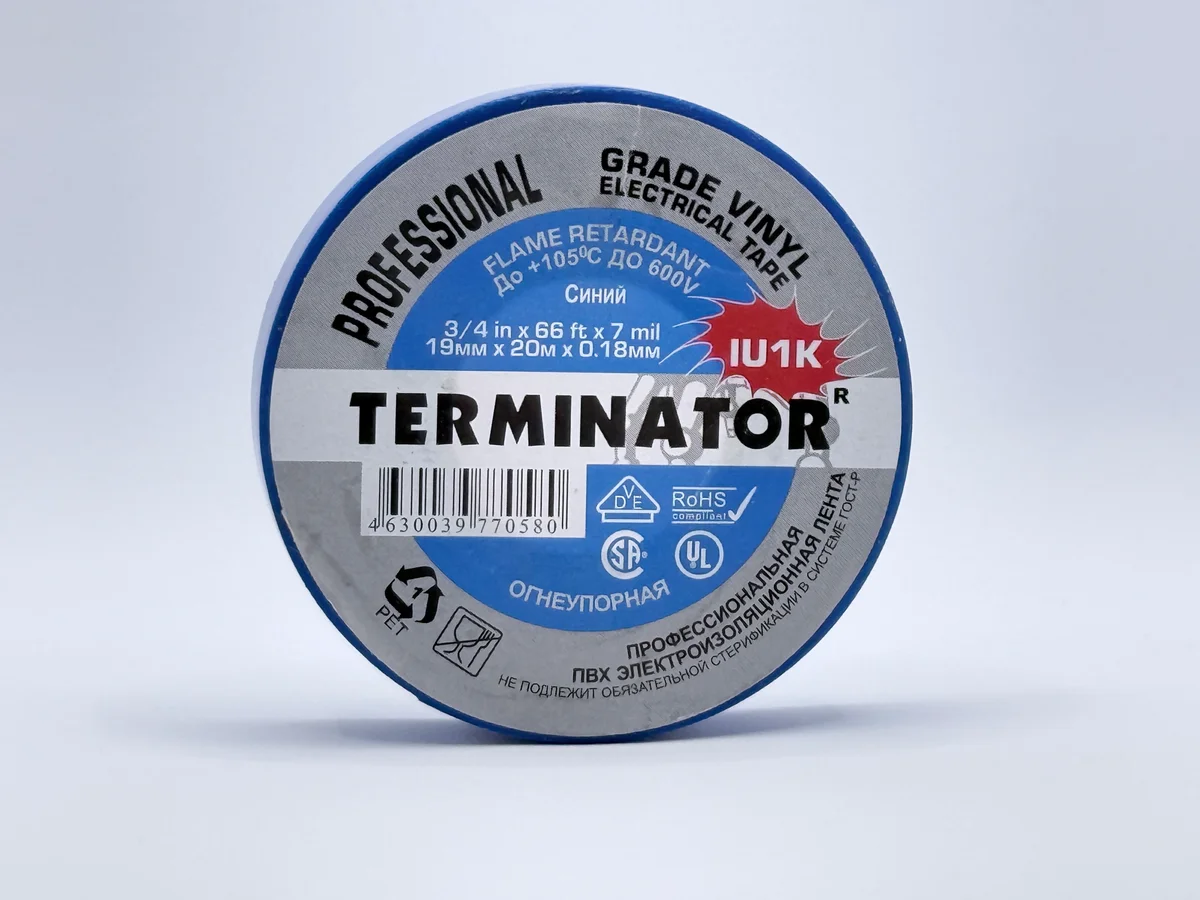

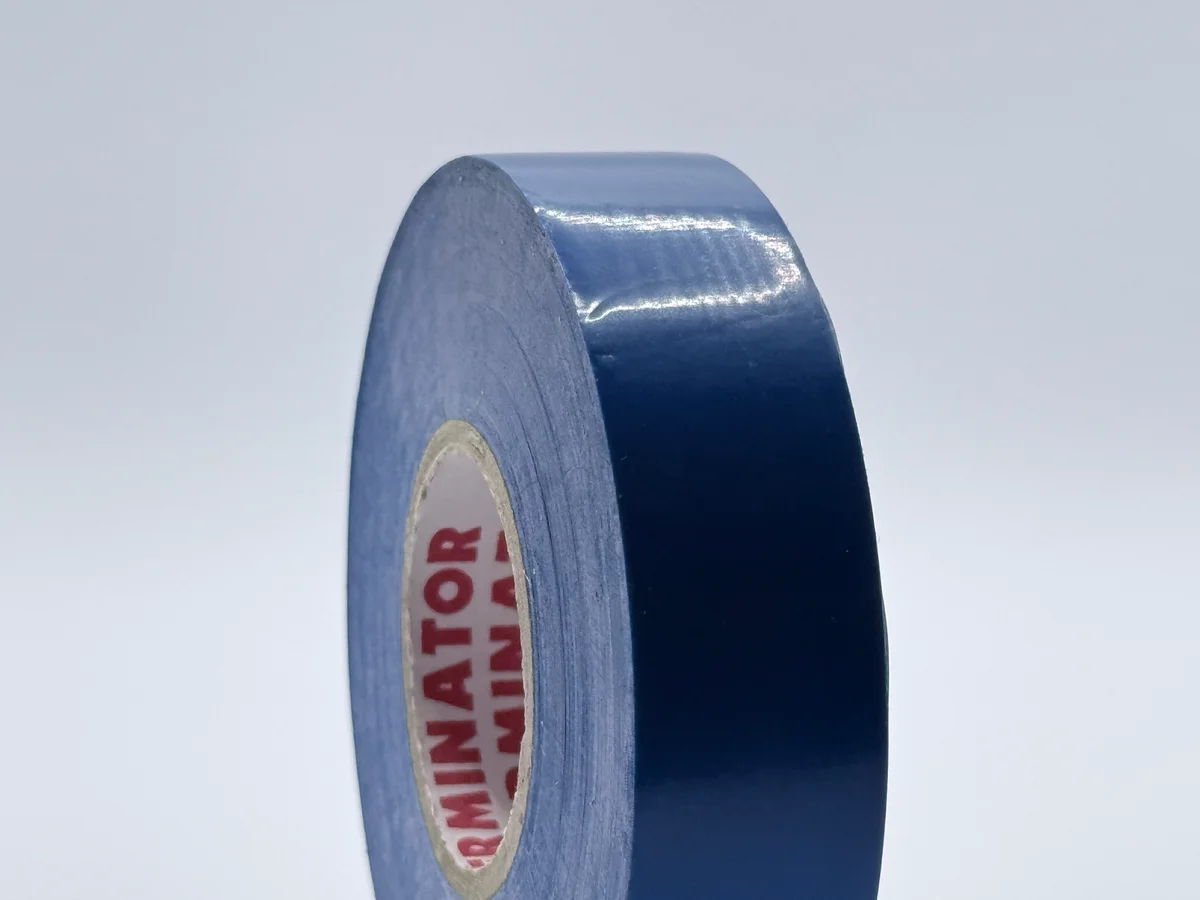

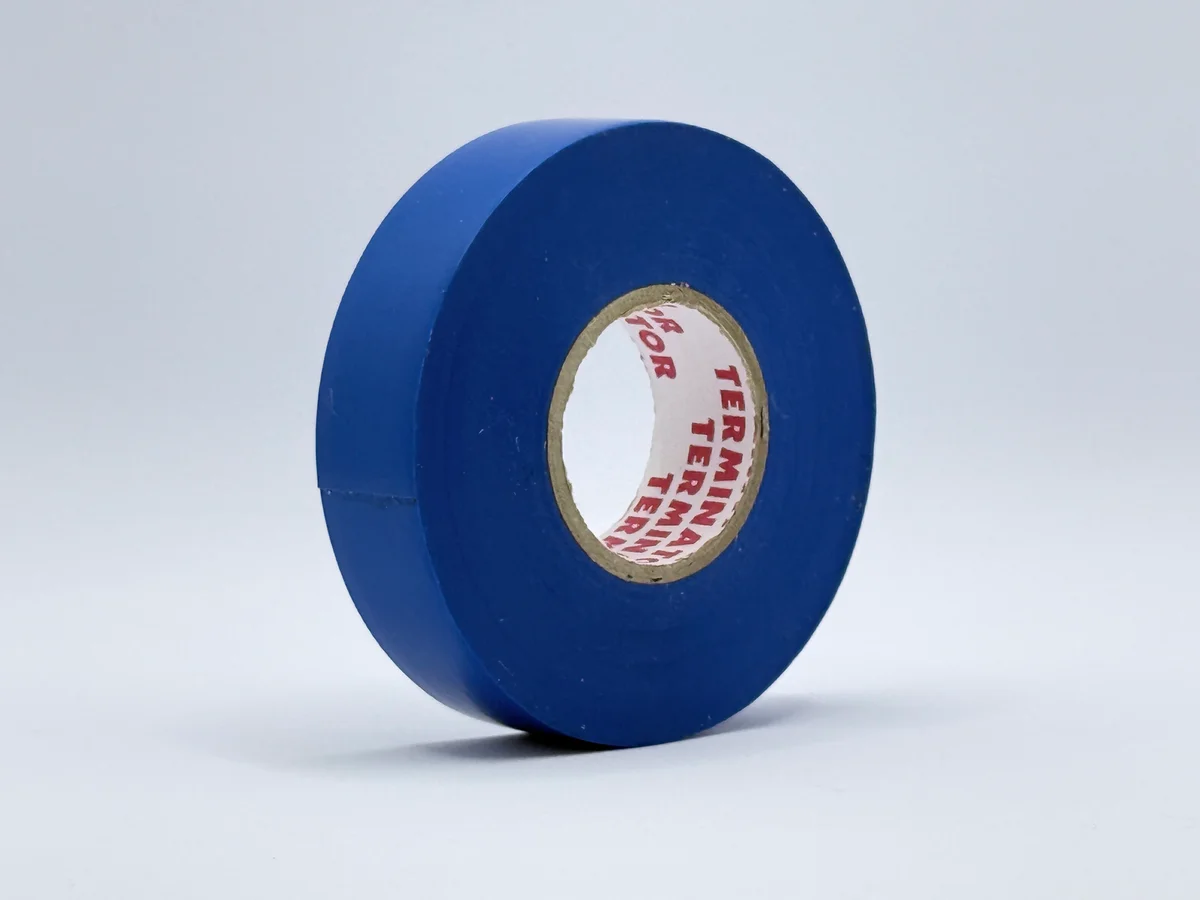

IU1K Blue
Premium Insulating Tape
Premium tape for neutral conductor marking. Blue color according to PUE standards.
Size19 mm × 20 m
Thickness0.18 mm
Temperaturefrom -10°C to +105°C
Extended temperature range
Blue IU1K insulating tape is designed for professional marking of neutral working conductors (N) according to PUE standards. Provides clear identification in electrical systems and complies with color coding standards.
Key Features
- Professional quality
- Color coding system
- Increased 0.18mm thickness
- Reliable insulation
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 20 m
- Thickness
- 0.18 ± 0.02 mm
- Material
- Plasticized PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.45 кг/25 мм
- Tensile Strength
- 7 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- from -10°C to +105°C
Electrical
- Dielectric Strength
- 7 kV
Special Properties
- Flammability rating
- 60 sec (UL) / PASS (CSA)
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
Applications
- Neutral conductor marking (N)
- Electrical installations
- Distribution panels
- Industrial electrical work
