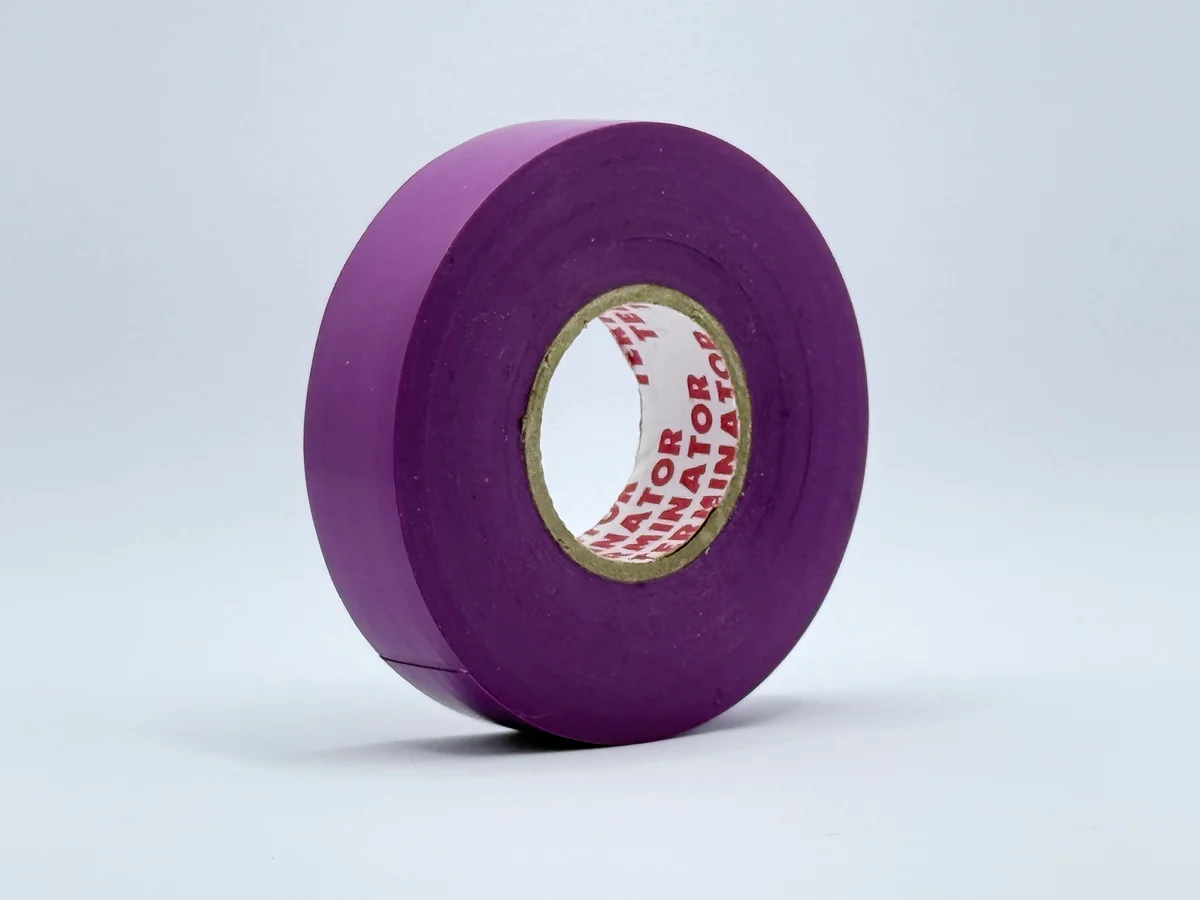

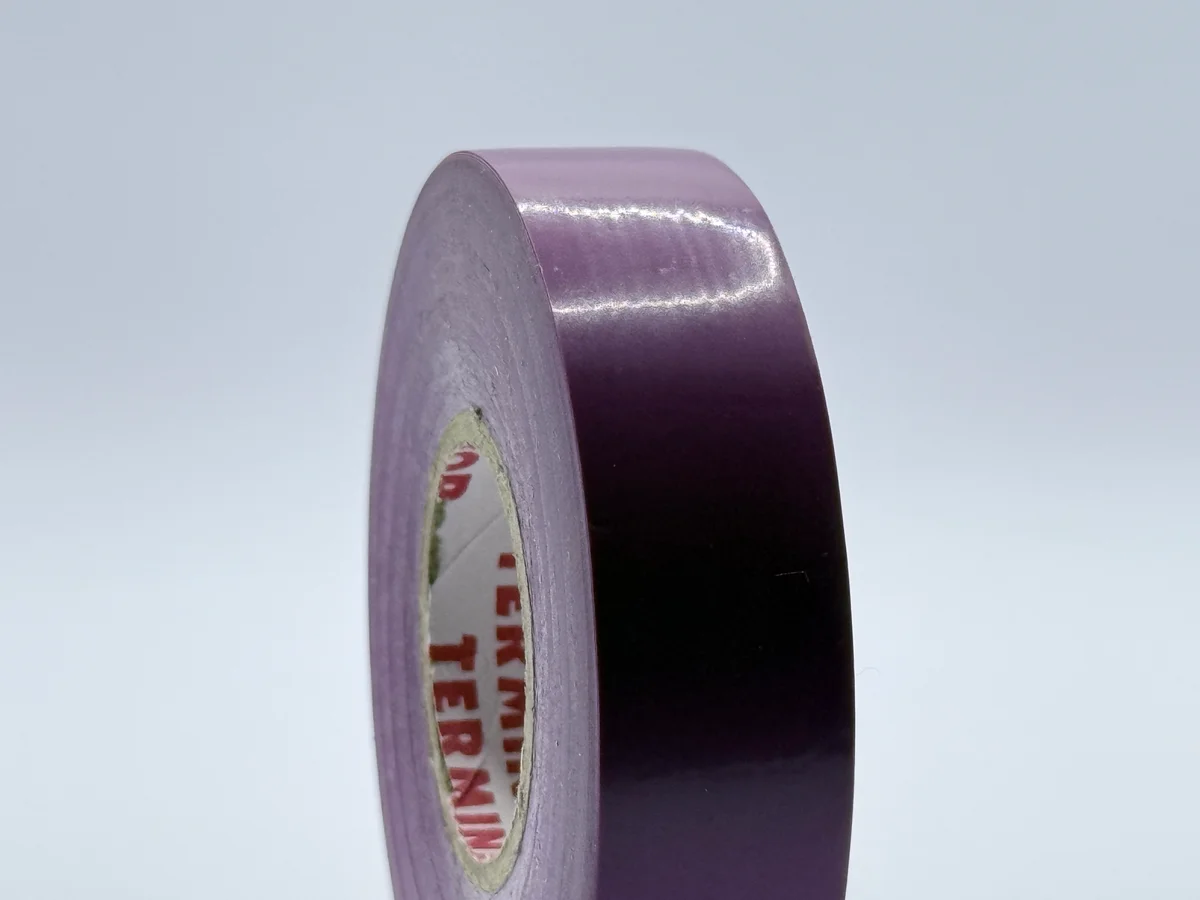

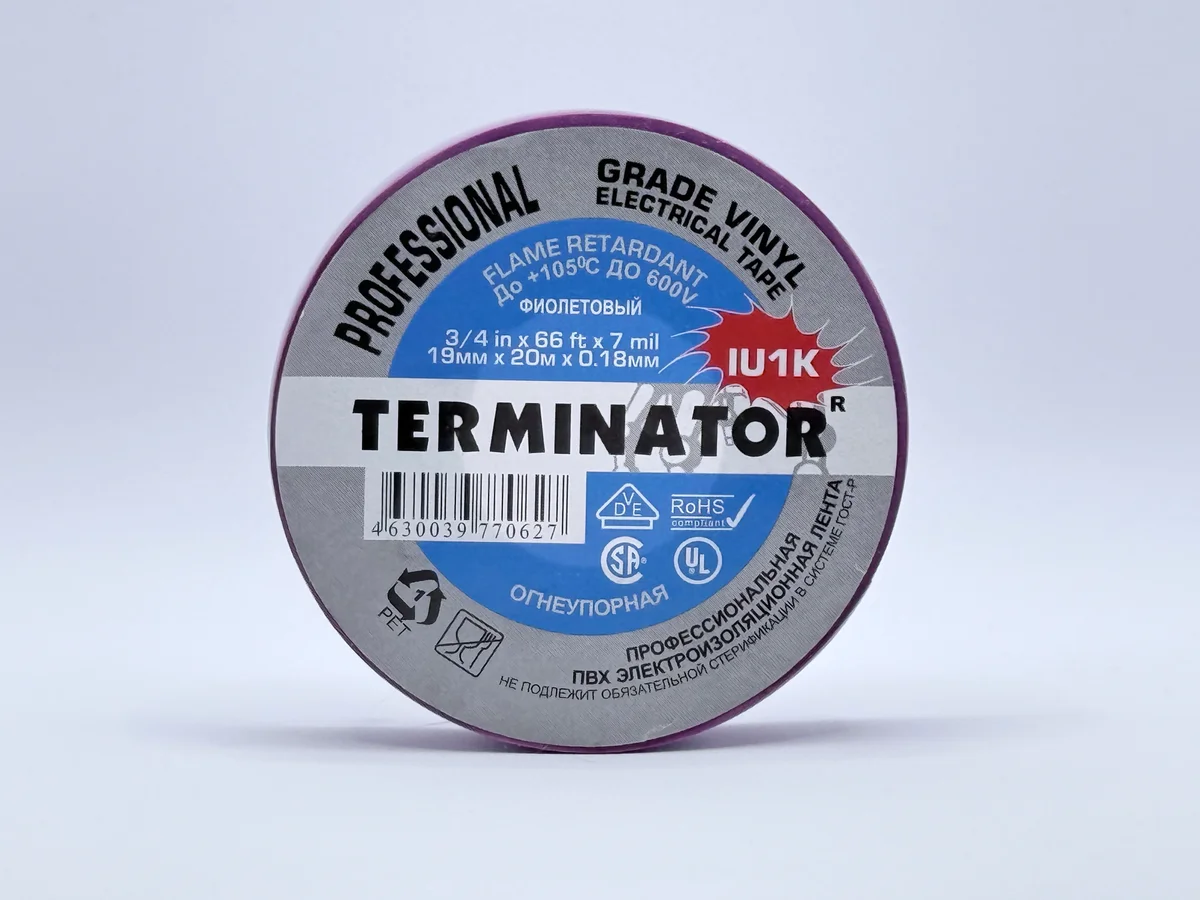

IU1K Purple
Premium Insulating Tape
Premium purple insulating tape for special marking.
Size 19 mm × 20 m
Thickness 0.18 mm
Temperature from -10°C to +105°C
Extended temperature range
Purple IU1K insulating tape is used for marking special circuits where unique color identification is required. Applied in complex electrical schemes to distinguish different systems. Premium quality for professional use.
Key Features
- Professional quality
- Color coding system
- Increased 0.18mm thickness
- Reliable insulation
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 20 m
- Thickness
- 0.18 ± 0.02 mm
- Material
- Plasticized PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.45 кг/25 мм
- Tensile Strength
- 7 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- from -10°C to +105°C
Electrical
- Dielectric Strength
- 7 kV
Special Properties
- Flammability rating
- 60 sec (UL) / PASS (CSA)
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
Applications
- Special electrical circuits
- Complex schemes
- Automation systems
- Project-specific marking
