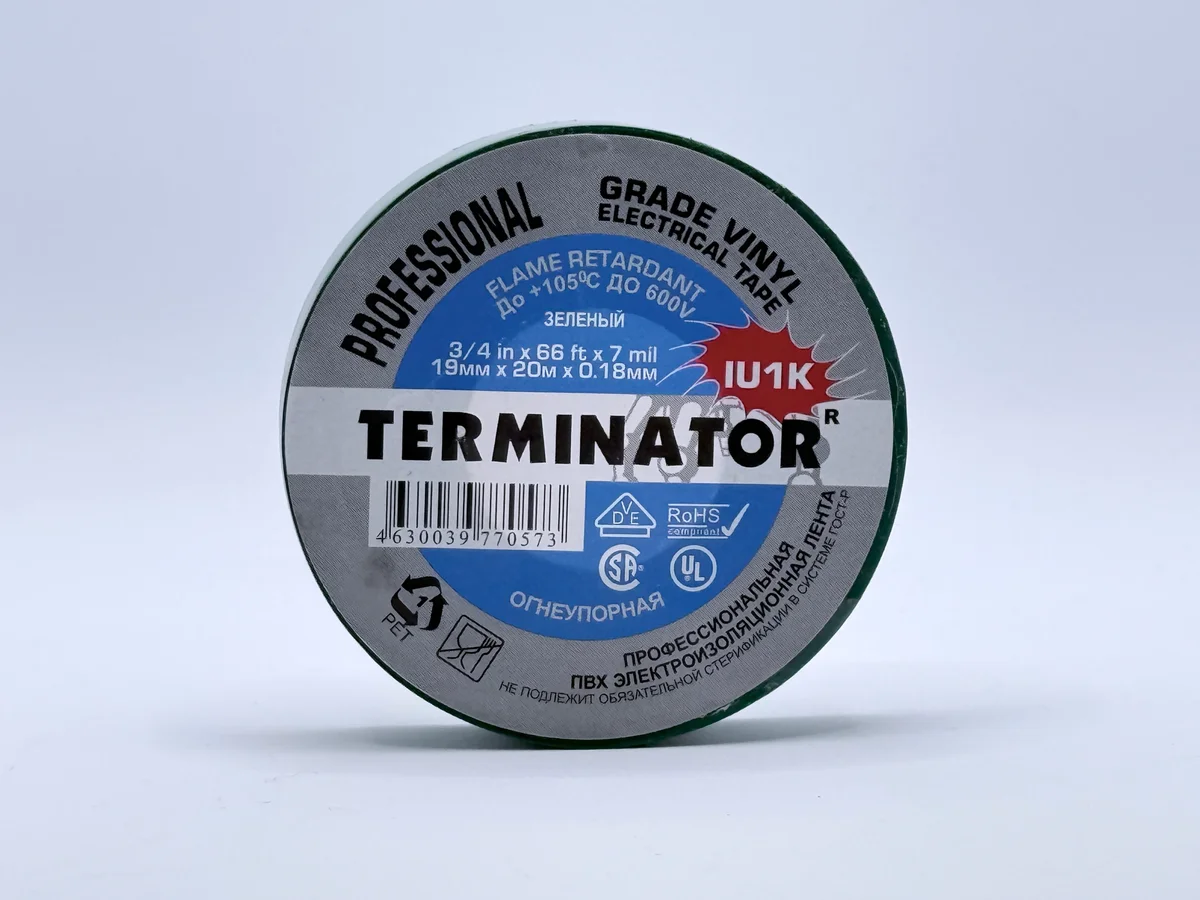

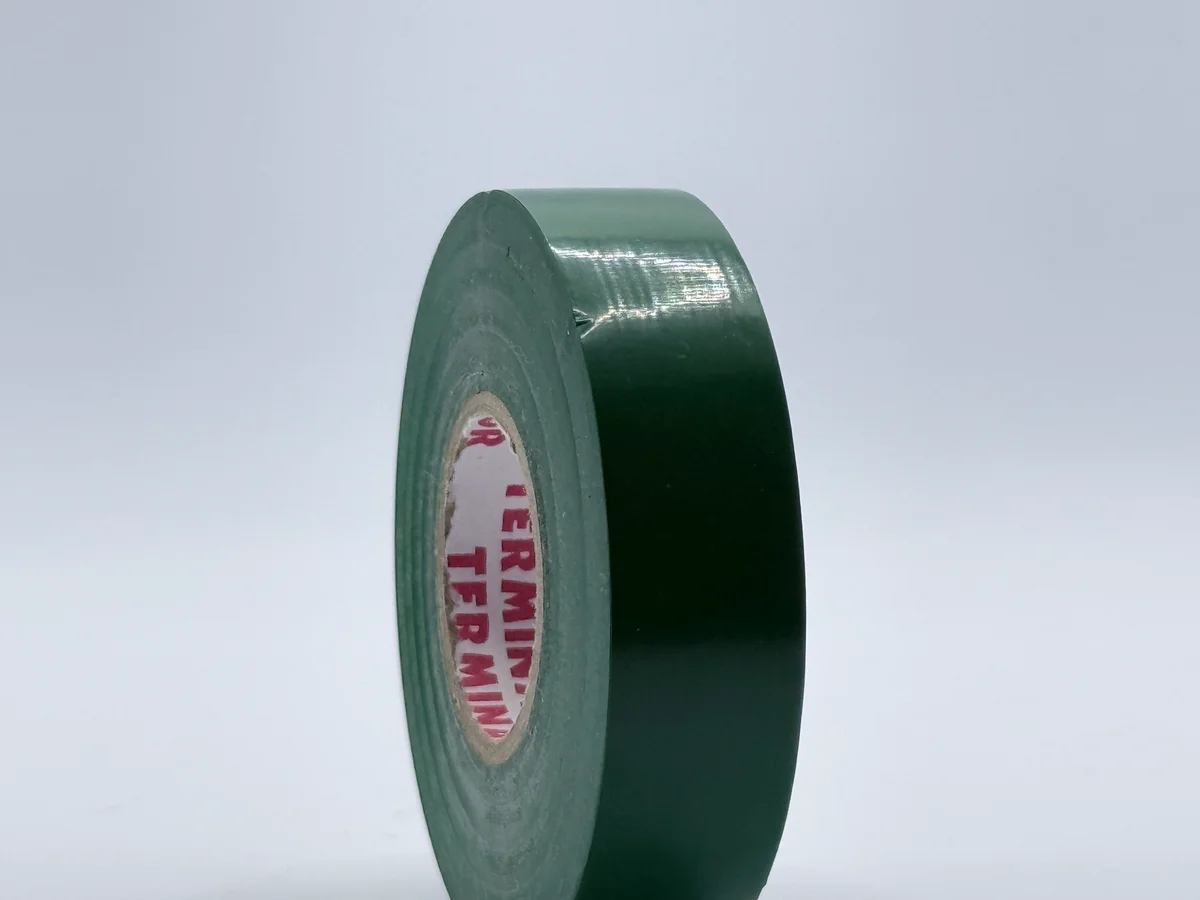

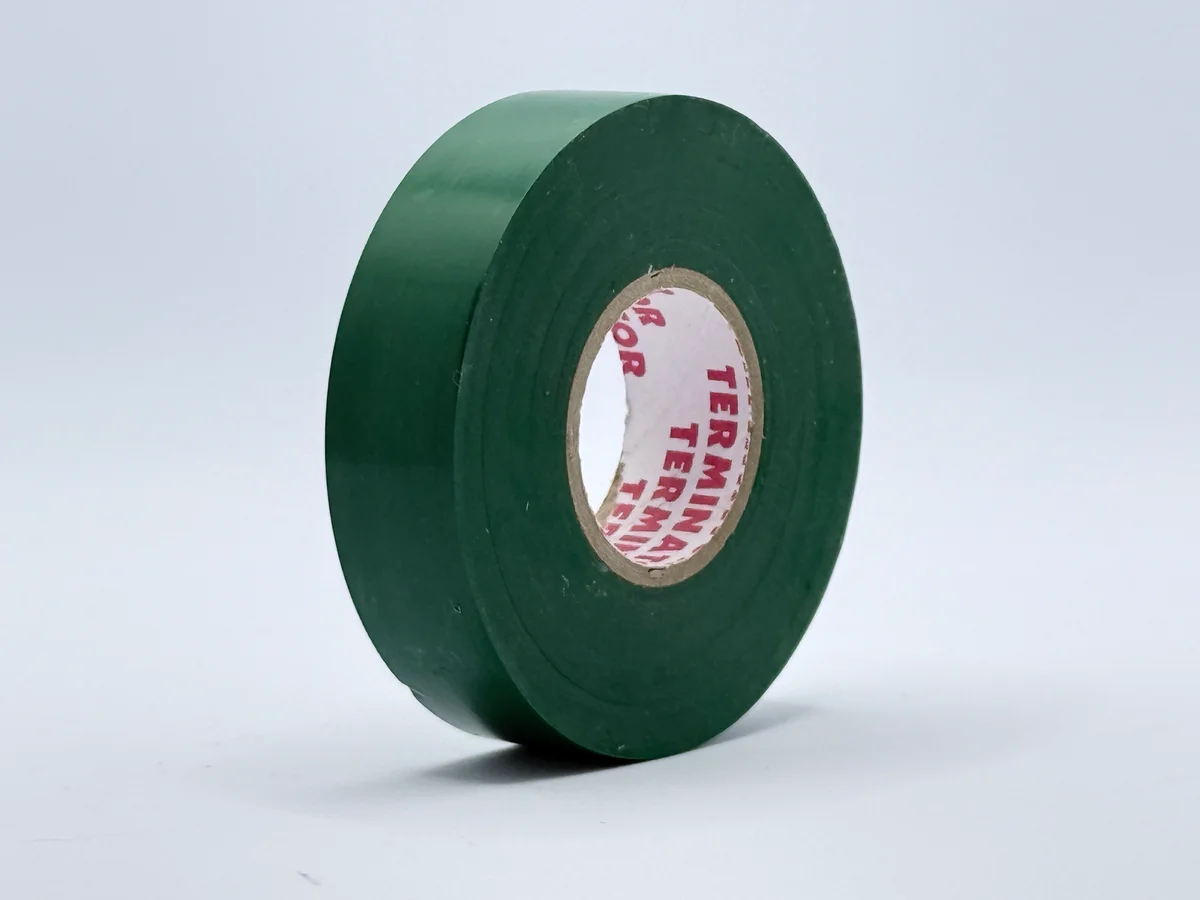

IU1K Green
Premium Insulating Tape
Premium tape for grounding. Green color for marking protective earth conductors.
Size 19 mm × 20 m
Thickness 0.18 mm
Temperature from -10°C to +105°C
Extended temperature range
Green IU1K insulating tape is designed for professional marking of earth conductors according to electrical standards. Provides reliable insulation and clear visual identification of protective earthing.
Key Features
- Professional quality
- Color coding system
- Increased 0.18mm thickness
- Reliable insulation
Technical Specifications
Dimensions & Material
- Size
- 19 mm × 20 m
- Thickness
- 0.18 ± 0.02 mm
- Material
- Plasticized PVC
- Adhesive type
- Rubber-based
Strength & Adhesion
- Adhesion to Steel
- 0.45 кг/25 мм
- Tensile Strength
- 7 кг/25 мм
- Elongation at Break
- 100%
Temperature
- Temperature
- from -10°C to +105°C
Electrical
- Dielectric Strength
- 7 kV
Special Properties
- Flammability rating
- 60 sec (UL) / PASS (CSA)
Storage
- Shelf Life
- 12 months
- Storage Conditions
- 23°C, 65% RH
Applications
- Earth conductor marking
- PE conductors
- Protective earthing
- Electrical installations
